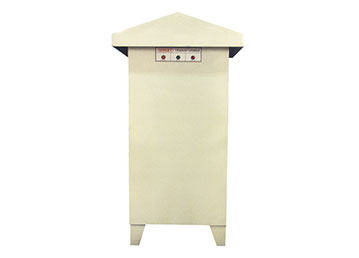

Servo Voltage Stabilizer Outdoor Type

These Servo Voltage Stabilizers Outdoor Type ensure to reduce the deformation in the output owing to less number of relays. With analog electronic circuit and modern features, they ensure to withstand heavy-loads. These Servo Controlled Automatic Voltage Stabilizers are ideal to handle huge power and current handling. These Servo Controlled Voltage Stabilizers are provided with less active components to avoid any failure ratings. These stabilizers come with special electronic circuits so that they can be operated on gensets.

Optional Features and Protections

  • Overload Cut-Off and Short Circuit Protection.
  • Low / High Voltage (out of input range) Alarm and / or Cut-Off.
  • High Temperature Alarm and / or Cut-Off.
  • Spike and surge protection
  • Temperature Meter, Digital Ammeter, Digital Voltmeter.
  • Stabilizer By Pass System
  • Remote control of stabilizer (with wires)

Servo Voltage Stabilizer Outdoor Type

Technical Specifications
Rating 5 kVA to 75 kVA
Input Voltage Range 140-270, 150-270, 160-270, 180-270 or custom built
Over-Load Capability up to 200% momentarily
Output Voltage Standard 220 / 230 / 240 Volts or as per customer requirement
Frequency 47Hz-63Hz
Line & Load regulation +/- 1%
Duty Cycle Continuous 24x7
Wave Form Distortion Nil true to input
Response Time Less than 10ms
Correction Speed Up to70V per sec. (Depend on Input Voltage range & capacity)
Technology Torridly wound Variable Auto Transformer for Linear control and greater efficience. (Internationally accepted)
Drive Direct AC drive for fastest voltage correction and durability (without any chain, sprockets and rail of pulleys)
Suitability Suitable for all power factor loads
Cooling Natural Air Cooled / Forced Air Cooled / Oil Cooled
Efficiency 97% to 99% (Depend on Input Voltage range & capacity)
Ambient Temperature Wide ambient temperature operation from –20 C to 50 C .
Class of Insulation Available in A/B/F/H Class
Additional Facility Manual Operation
No Load Loss Less than 0.4 %
Input / Output Termination Connectors/Copper Bus Bar
Installation Outdoor type
Degree of Protection IP –54
Due to new innovations & improvements the technical specifications are subject to change.
