Isolation Transformer / Ultra Isolation Transformer

We are a notable Isolation Transformers Manufacturer offering durable and modern solutions of preventing the way of line voltage transient and galvanic leakages. They ensure to protect the critical equipments such as medical equipments, computers and its peripherals, digital communications equipments, etc. from any kind of damage and wear. These Ultra Isolation Transformers are designed using exceptional multiple shielding methods for minimizing the capacitance less than 0.001 pf and DC Isolation up to 500M ohms. Attenuation of these transformers of common mode Noise is about 100db. The regulation is at 400 or 415V along with the AC of 4%.

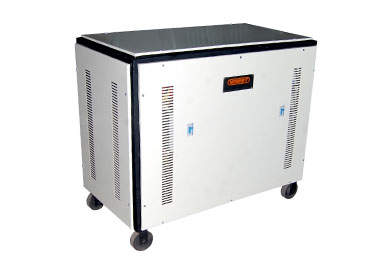

Isolation Transformer / Ultra Isolation Transformer

Isolation Transformers - Technical Specifications
Rating 5kVA to 150kVA, 3 Phase
Input Voltage 400V + 10%,50Hz,3 Phase, 4 Wire AC
Output Voltage 400V + 10%,50Hz,3 Phase, 4 Wire AC
Transformer Ratio 1:1
Regulation + / -4%
Coupling Capacitance Less than 0.001PF
DC Insulation Resistance >500 Mega Ohm at 500V DC
Common Mode Noise Approx. 100dB
Breakdown Voltage 2kV AC (rms) for 1 Minute
Suitability Suitable for all power factor loads
Cooling Natural Air Cooled / Oil Cooled
Duty Cycle Continuous 24x7
Installation Indoor (Outdoor also available)
Degree of Protection IP - 30 to - 55
No Load Loss Less than 0.5%
Efficiency 96 to 98%.(Depend on Capacity)
Winding & Wiring Material Copper EC grade (99.9% Pure)
Transformer Heavy duty Copper Wound Transformer
Input / Output Termination On Brass studs / Connectors / Copper Bus Bar
Insulation Class Available in A/B/F/H Class
Line Frequency 47 to 63 Hz
Working Temperature -20 C to 50
Over-Load Capacity 200% Momentarily

CERTIFICATIONS

Hindustan Power Products Pvt. Ltd. is a ISO 9001:2015, ISO 14001:2015 & CE certified company and has also received the International Star Award, for quality, in Gold Catagory - at Geneva".
