Step Up / Step Down Transformer - Oil Cooled Transformers

These high-tech, durable and cost-effective Step Up / Step Down Transformers Oil Cooled are provided with round the clock duty-cycle. These Oil Cooled Transformers are designed with 2500V AC for 2 Minutes break down strength. Our Air Cooled Transformers are provided with the insulation resistance features of more than 100 mega ohms at 500V DC. These Step UP Transformers are designed using hard-wearing raw materials with sturdy brass studs, connectors and bus bars used as terminals.

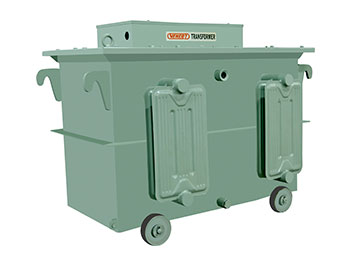

Step Up / Step Down Transformer Oil Cooled

Oil Cooled Transformers - Technical Specifications
Rating 15 kVA to 1000 kVA
Input Voltage As per requirement
Output Voltage Custom built Star / Delta connection
Wave Form Distortion Nil true to input
Suitability Suitable for all power factor loads
Duty Cycle Continuous 24x7
Cooling Natural Oil Cooled
Class of Insulation B Class
Break Down Strength 2500V AC for 2 Minutes.
Insulation Resistance Greater than 100 mega ohms at 500V DC
Installation Indoor & Out door type
Degree of Protection IP - 30 to IP - 55
No Load Loss Less than 0.5%
Efficiency 97-99%.
Winding & Wiring Material Copper EC grade (99.9% Pure)
Input / Output Termination On Brass Studs/Connectors/Copper Bus Bar

Air Cooled Step up / Step Down Transformers

The main purpose of a transformer is to step up or step down voltage. It makes voltage supply compatible with various working appliances. If the voltage is higher than the supply voltage, it becomes a step up transformer and if the voltage is low than the supply voltage, it works as step down transformer. Transformer ratings are measured in kVA. The ratings depend on the output and input voltages as well as current. Our company provides modern and durable Step up / Step down Transformers. They are simple and effective in design. They provide the accurate ratio of windings in every circuit to provide proper voltage and current. Following features of Step up and Step down are provided:

Transformers include -
• Shock absorbent
• High Energy Saver
• Voltage optimizers
• Cost effective
• Withstanding high temperature and heat
• Low maintenance costs

Air Cooled Transformers - Technical Specifications
Rating 15-150 kVA, 3 Phase, 47Hz to 63Hz.
Input Voltage As per your Electric supply (Phase to Phase) Star connected
Output Voltage As per your machine requirement (Phase to Phase) Star / Delta connection
Wave Form Distortion Nil
Suitability Suitable for all power factor loads
Duty Cycle Continuous 24x7
Cooling Natural Air Cooled
Class of Insulation B Class
Break Down Strength 2500V AC for 2 Minutes.
Insulation Resistance Greater than 100 mega ? at 500V DC
Installation Indoor type
Degree of Protection IP – 30
No Load Loss Less than 0.5%
Efficiency 98-99%.
Winding & Wiring Material Copper EC grade (99.9% Pure)
Input / Output Termination On Brass Studs/Connectors/Copper Bus Bar
MCCBs & Switchgears Schneider/L&T/Siemens
Working temperature –20 C to 50 C .
Over Load Capacity 200% momentarily
