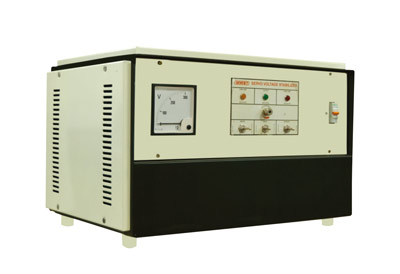

5 kVA to 75 kVA Servo Voltage Stabilizer Single Phase - Air Cooled

These 5 kVA to 75 kVA Servo Voltage Stabilizers Single Phase - Air Cooled are one of the best ways to keep the expensive equipment and machines safe. These 5 KVA Voltage Stabilizers are ideal to safe power, energy and cost. These 75 KVA Servo Voltage Stabilizers are reliable in designs with easy to operate designs and structure. In addition to this, these 1 Ph Servo Voltage Stabilizers are ideal to provide complete protection with minimum maintenance.

Optional Features & Protections

  • Overload Cut-Off and Short Circuit Protection.
  • Low / High Voltage (out of input range) Alarm and / or Cut-Off.
  • High Temperature Alarm and / or Cut-Off.
  • Spike and surge protection
  • Temperature Meter, Digital Ammeter, Digital Voltmeter.
  • Stabilizer By Pass System

5 kVA to 75 kVA Servo Voltage Stabilizer Single Phase - Air Cooled

Technical Specifications
Rating 5 kVA to 75 kVA
Input Voltage Range 140-270, 150-270, 160-270, 180-270 or custom built
Over-Load Capability up to 200% momentarily
Output Voltage Continuous 24x7
Frequency 47Hz-63Hz
Line & Load regulation +/- 1%
Duty Cycle Continuous 24x7
Wave Form Distortion Nil true to input
Response Time Less than 10ms
Correction Speed Up to 70V per sec. (Depend on Input Voltage range & capacity)
Technology Torridly wound Variable Auto Transformer for Linear control and greater efficience. (Internationally accepted)
Drive Direct AC drive for fastest voltage correction and durability (without any chain, sprockets and rail of pulleys)
Suitability Faster than 24V per sec.
Additional Facility Manual Operation
Cooling Copper EC grade (99.9% Pure)
Efficiency Torridly wound Variable Auto Transformer for linear control and greater efficiency.
Ambient Temperature Wide ambient temperature operation from: -20°C to 50°C
Class of Insulation Available in A/B/F/H Class
No Load Loss Less than 0.4%
Winding & Wiring Material Copper EC grade (99.9% Pure)
Input / Output Termination Connectors/Copper Bus Bar
Installation Indoor type
Degree of Protection IP – 30
Due to new innovations & improvements the technical specifications are subject to change.
