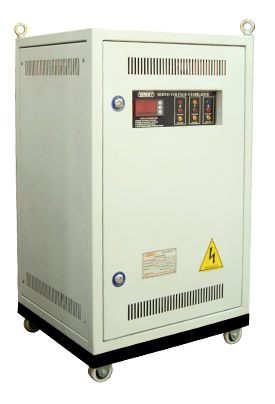

These 30 KVA Servo Voltage Stabilizers 3 Phase - Air Cooled are automatic stabilizers available with high-grade stainless steel to ensure maximum efficacy and durability. They are provided with 30KVA power having input voltage of 300 - 480 Volt and output voltage of 415 Volt. These 30 KVA Three Phase Voltage Stabilizers are provided with digital micro controls and LCD display to show date & time, voltage, current, etc. They come with programmable features of HV cut-off set and LV cut-off set.
Optional Protections
- Overload Cut-Off and Short Circuit Protection.
- Low/High Voltage (out of input range) Alarm or Cut-Off.
- Phase Missing / Phase Reversal Alarm or Cut-Off.
Optional Features
- Digital Multifunction Meter. Manual Bypass & Auto Phase Correction
Salient Features
- "IC" based solid-state, relay less, plug in control cards for easy online serviceability.
- Output voltage adjustable ± 6% of set voltage from front panel.
- Meters on front panel for easy monitoring of input and output voltage along with limit indicators.
- Provision for Auto / Manual control from the front panel.
- Wide ambient temperature operation from -20oC to 50oC.
- Due to new innovations & improvements the technical specifications are subject to change.
