Automatic Servo Controlled AC Voltage Stabilizer 1500 To 3000 kVA

These Automatic Servo Controlled AC Voltage Stabilizers from 1500 To 3000 kVA are available with modern features such as auto restart time pause. They are provided with high level of accuracy and safety. These 1500-3000 KVA Servo Controlled Voltage Stabilizers are designed with latest technology electronic control servo motor to control motorized variable transformers. Durable and sturdy design of these stabilizers provides 100% secure and safe operation for years to come.

Optional Protections

  • Overload Cut-Off and Short Circuit Protection.
  • Low/High Voltage (out of input range) Alarm or Cut-Off.
  • Phase Missing / Phase Reversal Alarm or Cut-Off.

Optional Features

  • Digital Multifunction Meter. Manual Bypass & Auto Phase Correction

Salient Features

  • "IC" based solid-state, relay less, plug in control cards for easy online serviceability.
  • Output voltage adjustable ± 6% of set voltage from front panel.
  • Meters on front panel for easy monitoring of input and output voltage along with limit indicators.
  • Provision for Auto / Manual control from the front panel.
  • Wide ambient temperature operation from -20°C to 50°C.
  • Due to new innovations & improvements the technical specifications are subject to change.

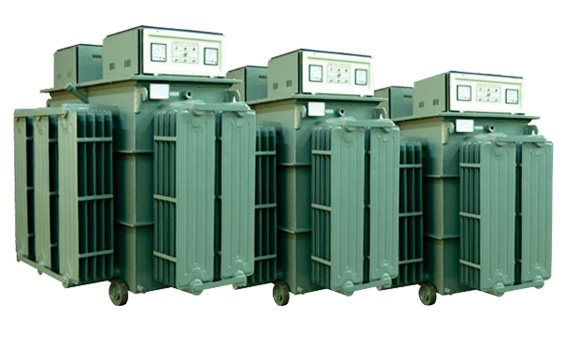

1500 to 3000 kVA Voltage Stabilizer

Technical Specifications
Rating 1500 to 3000 kVA, 3 Phase, 4 Wire
Input Voltage Range 340V to 460V, 47Hz to 63Hz, 4 Wire
Output Voltage 400V +/- 1%
Duty Cycle Continuous 24x7
Waveform Distortion Nil
Response Time Less than 10ms
Suitability Suitable for all power factor loads
Cooling Natural Oil Cooled
Class of Insulation A Class
Breakdown Strength & IR 1500V AC For 2 Minutes. Greater than 50 Mega Ohms at 500V DC
Additional Facility Manual Operation
Installation Indoor type (Out Door Type Also Available)
Degree of Protection IP-30
No Load Loss Less than 0.4 %
Efficiency 98-99%
Ambient Temperature -20°C to +50°C
Transformer Oil New Insulating Transformer Oil ISI 335 Marked
Input / Output Termination On Copper Bus Bar
Winding & Wiring Material Copper EC grade (99.9% Pure)
Technology Torridly wound Variable Auto Transformer for linear control and greater efficiency.
Drive Direct AC drive for fastest voltage correction and durability
Controls All the three phases controlled individually for better voltage and load management.
Applicable Standard IS 9815, ISO 9001-2015, ISO 14001-2015
International Marking CE Conformity EN61558-1:2005+A1:2009
Due to new innovations & improvements the technical specifications are subject to change.
Other Ranges are also available like 320-460, 300-460, 280-460, 260-460 or custom built
