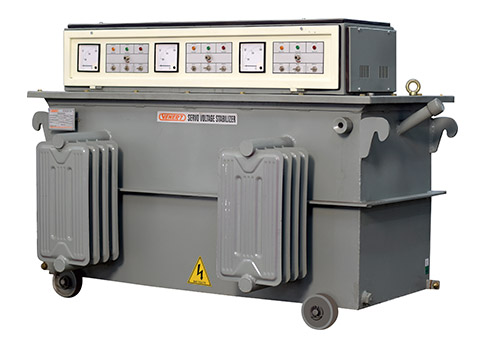

150 kVA Industrial Voltage Stabilizer 3 Phase - Oil Cooled
These 150 kVA Industrial Voltage Stabilizers 3 Phase - Oil Cooled works on oil cooled mechanism. They are durable and competent products designed to work efficiently in poor power conditions. These 3 Phase Voltage Stabilizers are manual and automatic in nature. The 150KVA Voltage Stabilizers are power-saving in nature available with nominal output voltage of 400V. They come with the efficiency rate of 98% at nominal load. In addition to this, they come with 120% over load capacity.
Optional Protections
Overload Cut-Off and Short Circuit Protection.
Low/High Voltage (out of input range) Alarm or Cut-Off.
Phase Missing / Phase Reversal Alarm or Cut-Off.
Optional Features
Digital Multifunction Meter. Manual Bypass & Auto Phase Correction
Salient Features
"IC" based solid-state, relay less, plug in control cards for easy online serviceability.
Output voltage adjustable ± 6% of set voltage from front panel.
Meters on front panel for easy monitoring of input and output voltage along with limit indicators.
Provision for Auto / Manual control from the front panel.
Wide ambient temperature operation from -20°C to 50°C.
Due to new innovations & improvements the technical specifications are subject to change.
Technical Specifications - Model SVS34L3150
Rating
150 kVA, 3 Phase, 4 Wire
Output Current
217 Amps per phase
Input Voltage Range
340V to 460V, 47Hz to 63Hz, 4 Wire
Output Voltage
400V +/- 1%
Duty Cycle
Continuous 24x7
Waveform Distortion
Nil
Response Time
Less than 10ms
Suitability
Suitable for all power factor loads
Cooling
Natural Oil Cooled
Class of Insulation
A Class
Breakdown Strength & IR
1500V AC For 2 Minutes. Greater than 50 Mega Ohms at 500V DC
Additional Facility
Manual Operation
Installation
Indoor type (Out Door Type Also Available)
Degree of Protection
IP-30
No Load Loss
Less than 0.4 %
Efficiency
98-99%
Ambient Temperature
-20°C to +50°C
Transformer Oil
New Insulating Transformer Oil ISI 335 Marked
Size (in mm) & Weight
L 1450 x D 960 x H 940 & 742 Kg.
Input / Output Termination
On Copper Bus Bar
Winding & Wiring Material
Copper EC grade (99.9% Pure)
Technology
Torridly wound Variable Auto Transformer for linear control and greater efficiency.
Drive
Direct AC drive for fastest voltage correction and durability
Controls
All the three phases controlled individually for better voltage and load management.
Applicable Standard
IS 9815 , ISO 9001-2015 , ISO 14001-2015
International Marking
CE Conformity EN61558-1:2005+A1:2009
Due to new innovations & improvements the technical specifications are subject to change.
Other Ranges are also available like 320-460, 300-460, 280-460, 260-460 or custom built
