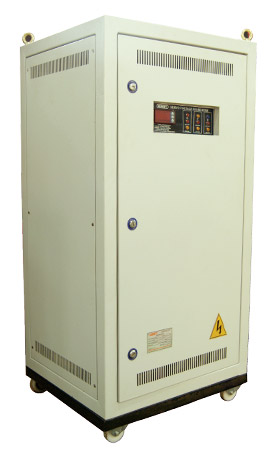

These 125 KVA Servo Voltage Stabilizers 3 Phase - Air Cooled are designed with output voltage of 230 to 400 V. They come with the line frequency vibration of 47Hz-53Hz. The response time of these 125 KVA Air Cooled Voltage Stabilizers is 10 ms. With durable and sturdy LCD display, these 125 KVA 3 Phase Stabilizers show output voltage, current, input voltage, date & time. They come with more than 97% efficacy.
Optional Protections
- Overload Cut-Off and Short Circuit Protection.
- Low/High Voltage (out of input range) Alarm or Cut-Off.
- Phase Missing / Phase Reversal Alarm or Cut-Off.
Optional Features
- Digital Multifunction Meter. Manual Bypass & Auto Phase Correction
Salient Features
- "IC" based solid-state, relay less, plug in control cards for easy online serviceability.
- Output voltage adjustable ± 6% of set voltage from front panel.
- Meters on front panel for easy monitoring of input and output voltage along with limit indicators.
- Provision for Auto / Manual control from the front panel.
- Wide ambient temperature operation from -20oC to 50oC.
- Due to new innovations & improvements the technical specifications are subject to change.
